C-Astral Bramor C4EYE
The field proven BRAMOR C4EYE UAS line is appropriate for operations where real-time or near real time video observation and surveillance capability is of utmost importance. With an endurance of up to 3 hours, a standard data and payload link of 40 km, or the optional MANET / MIMO digital communications capabilities.


Surveillant
Fully Autonomous Drone

A drone in a box, the Surveillant is capable of flying off to missions and docking when done and can integrate with other equipment to provide defense solutions such as Triggered Events. It is scalable and operable with multiple units and has Intelligent Video Analytics as well as Collision Avoidance systems.
KEY ADVANTAGES

Fully Autonomous Drone

Live Feed data streaming

Event triggerable to notify authorities

Automatic recharging of batteries

Docking station is connected to a weather station to evaluate condition for safe flight

Performs in a swarm of several drones if needed to cover a bigger area

Activatable from a command centre in another country

Object Target Tracking

MANUAL MISSION START
Manually starting missions is easier than using the alarm api, does not necessarily need the docking station and missions can be flown in rapid succession. These traits make this mode ideal for testing and demonstration purposes.
1. Select the operation site
2. Do the portal setup
3. Do the site setup
4. Start the drone
5. Perform the flight
6. Clear up
SURVEILLANT SOFTWARE



APPLICATION AREAS

Inspection

Surveillance

Search and Rescue

Fully Autonomous Flight
DAYLIGHT CAMERA
Resolution
1080p - 1920x1080p
Horizontal View Angle
58.2° to 6.9°
Optical Zoom
10x
Minimal Illumination
0.5lx
.png)

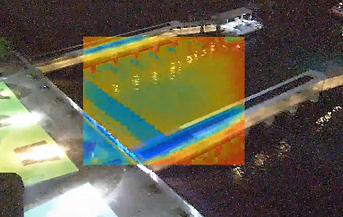

THERMAL CAMERA
Resolution
640 x 480 pixels
Horizontal View Angle
30x
Spectral Range
Longwave infrared (7.5 µm – 13.5 µm)
Thermal Sensitivity
<60 mK
.png)
TECHNICAL SPECIFICATIONS

Max Flight Range
2.5 Km
Max Wind Speed
10 m/s
Operating Temperature
-10⁰C to 35⁰C
Radio Transmitter Frequency
2.4GHz
MTOW
5 Kg
Max Speed
20 m/s
Max Pitch Angle
35⁰
Max Rotation Speed
60 ⁰/s
