AVES IV

ISR
AVES IV CWT AEROSPACE
aves

AVES lV is ideal for surveillance operations where response time for first responders is of utmost importance. Durable, Reliable, Future-proof and having a basic configuration equipped with a highly capable dual EO(30X) and IR(4X) camera zoom that comes with object tracking capabilities, the AVES IV is your ideal eyes in the sky.

AVES-T
CWT AEROSPACE SERVICES PTE LTD

AVES-T

icon

Flight time up to 35 minutes

 High capable EO camera with 30Xand IR camera with 4X zoom

icon
icon

Payload capacity up to 5 kg

icon

Obstacle avoidance

icon

Object target tracking

icon

Modular Design

KEY ADVANTAGES

 DAY CAMERA

aves iv camera

Visual Sensor

1920 x 1080 1/2.8” CMOS Sensor 2.Mp

Optical Zoom

30x

Digital Zoom

12x

Minimal Illumination

0.011x

Camera Functions

Black Hot,White Hot,Pseudo Colour

Weight

<780g

Dimensions (L x W x H)

164.2 x 162.5 x 146.5 (mm)

Focal length / View Angle

Automatic/Manual exposure time control




thermal imaging aves iv
camera aves iv

THERMAL CAMERA

Thermal Sensor

640 x 480 (LWIR 8-14μm)

Thermal Sensitivity

50mK

Digital Zoom

2x and 4x

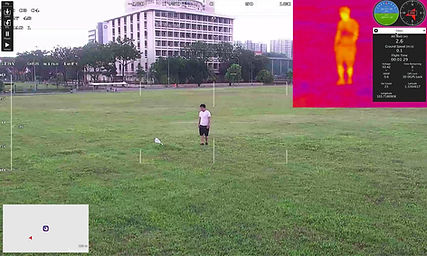

thermal imaging
thermal imaging


APPLICATION AREAS

surveillance
Surveillance
security
Security
inspection
Inspection
border defense
Border Defense


TECHNICAL SPECIFICATIONS

AVES IV CWT AEROSPACE

Dimension (Unfolded)

1000 x 1000 x 440 (mm)

Max Speed

50 Km/h

Dimensions (Folded)

400 x 430 x 440 (mm)

MTOW

9.5Kg

Operating Voltage

22.2 V (Nominal)

Max Flight Time

35 mins

Flight Celing

3200m

Maximum Distance

Up to 20 Km

Motor kV

340 kV
